I need to migrate my ElasticSearch installation over to OpenSearch. From reading the documentation, it isn’t really clear if that is even possible as an in-place upgrade or if I’d need to use a remote reindex or snapshot backup/restore. So I tested the process with a minimal data set. TL;DR: Yes, it works.
Yes, a very basic data set in ElasticSearch 7.7.0 can be upgraded in-place to OpenSearch 2.12.0 — in the “real world” compatibility issues will crop up (flatten!!), but the idea is fundamentally sound.
Problem, though, is compatibility issues. We don’t have exotic data types in our instance but Kibana uses “flatten” … so those rare people use use Kibana to access and visualize their data really cannot just move to OpenSearch. That’s a huge caveat. I can recreate everything manually after deleting all of the Kibana indices (and possibly some more, haven’t gone this route to see). But if I’m going to recreate everything, why wouldn’t I recreate everything and use remote reindex to move data? I can do this incrementally — take a week to move all the data slowly, do a catch-up reindex t-2 days, another t-1 days, another the day of the change, heck even one a few hours before the change. Then the change is a quick delta reindex, stop ElasticSearch, and swap over to OpenSearch. The backout is to just swing back to the fully functional, unchanged ElasticSearch instance.
Our ElasticSearch environment melted down in a fairly spectacular fashion — evidently (at least in older iterations), it’s an unhandled Java exception when a server is trying to send data over to another server that is refusing it because that would put the receiver over the shard limit. So we didn’t just have a server or three go into read only mode — we had cascading failure where java would except out and the process was dead. Restarting the ElasticSearch service temporarily restored functionality — so I quickly increased the max shards per node limit to keep the system up whilst I cleaned up whatever I could clean up
There were two requests against the ES API that were helpful in cleaning ‘stuff’ up — GET /_cat/allocation?v returns a list of each node in the ES cluster with a count of shards (plus disk space) being used. This was useful in confirming that load across ‘hot’, ‘warm’, and ‘cold’ nodes was reasonable. If it was not, we would want to investigate why some nodes were under-allocated. We were, however, fine.
The second request: GET /_cat/shards?v=true which dumps out all of the shards that comprise the stored data. In my case, a lot of clients create a new index daily — MyApp-20231215 — and then proceeded to add absolutely nothing to that index. Literally 10% of our shards were devoted to storing zero documents! Well, that’s silly. I created a quick script to remove any zero-document index that is older than a week. A new document coming in will create the index again, and we don’t need to waste shards not storing data.
Once you’ve cleaned up the shards, it’s a good idea to drop your shard-per-node configuration down again. I’m also putting together a script to run through the allocated shards per node data to alert us when allocation is unbalanced or when total shards approach our limit. Hopefully this will allow us to proactively reduce shards instead of having the entire cluster fall over one night.
The default size limit for CSV reports in Kibana is 10 meg. Since that’s not enough for some of our users, I’ve been testing increases to the xpack.reporting.csv.maxSizeBytes value.
We’re still limited by the ES http.max_content_length value — which the documentation seems pretty confident shouldn’t be increased because the system can become unstable. Increasing the max Kibana report size to 100mb just yields a different error because ES doesn’t like it. 75 exhausted the JavaScript heap (?) – which I could get around by setting NODE_OPTIONS=–max_old_space_size=4096 … but that just led to the server abending whenever a report was run (in fact, I had to remove the reports I tried to run from the server to get everything back into a working state). Increasing the limit to 50 meg, though, didn’t do anything unreasonable in dev. So somewhere between 50 and 75 meg is our upper limit, and 50 seemed like a nice round number to me.
Notes on resource usage – Data is held in memory as a report is created. We’d see an increase in memory/CPU usage while the report is being generated (or, I guess more accurately, a longer time during which the memory/CPU usage is increased because if a 10 meg report takes 30 seconds to run then a 50 meg report is going to take 2.5 minutes to run … and the memory/CPU usage is pretty much the same during the “a report is running” period).
Then, though, the report is stashed in ElasticSearch for user(s) to retrieve within .reporting* indicies. And that’s where things get a little silly — architecturally, this is just another index; it ages off with a lifecycle policy if one exists. But it looks like they never created a lifecycle management policy. So you can still retrieve reports run a little over two years ago! We will certainly want to set up a policy to clean up old reports … just have to decide how long is reasonable.
ElasticSearch, based on the Lucene search software, is a distributed search and analytics application which ingests, stores, and indexes data. Kibana is a web-based front-end providing user access to data stored within ElasticSearch.
What is OpenSearch?
In short, it’s the same but different. OpenSearch is also based on the Lucene search software, is designed to be a distributed search and analytics application, and ingests/stores/indexes data. If it’s essentially the same thing, why does OpenSearch exist? ElasticSearch was initially licensed under the open-source Apache 2.0 license – a rather permissive free software license. ElasticCo did not agree with how their software was being used by Amazon; and, in 2021, the license for ElasticSearch was changed to Server Side Public License (SSPL). One of the requirements of SSPL is that anyone who implements the software and sells their implementation as a service needs to publish their source code under the SSPL license – not just changes made to the original program but all other software a user would require to run the software-as-a-service environment for themselves. Amazon used ElasticSearch for their Amazon Elasticsearch Service offering, but was unable/unwilling to continue doing so under the new license terms. In April of 2021, Amazon Web Services created a fork of ElasticSearch as the basis for OpenSearch.
Differences Between OpenSearch and ElasticSearch
After the OpenSearch fork was created, the product roadmap for ElasticSearch was driven by ElasticCo and the roadmap for OpenSearch was community driven (with significant oversight and input from Amazon) – this means the products are not identical although they provide the same core functionality. Elastic publishes a list of features unique to ElasticSearch, and the underlying machine learning algorithms are different. However, the important components of the “unique” feature list have been implemented in OpenSearch over time.
The biggest differences are price and support. OpenSearch is free software – there is no purchasing a license to unlock features. It does appear that Amazon has an internal iteration of OpenSearch as their as-a-service offering provides features not available in the open-source OpenSearch code base, but that is only available for cloud customers. ElasticCo offers ElasticSearch as free software with a limited feature set. One critical limitation is user authentication mechanisms – we are unable to implement PingID as an authentication source with the free feature set. Advanced features not currently used today – machine learning based anomaly detection, as an example – are also unavailable in the free iteration of ElasticSearch. With an ElasticSearch license, we would also get vendor support. OpenSearch does not offer vendor support, although there are third party companies that will provide support services.
Both OpenSearch and ElasticSearch have community-based support forums available – I have gotten responses from developers on both forums for questions regarding usage nuances.
Salient Feature Comparison
Most companies have a list differentiating their product from the products offered by competitors – but the important thing is how the products differ as it relates to how an individual customer uses the product. A car that can have a fresh cup of espresso waiting for you as you leave for work might be amazing to some people, but those who don’t drink coffee won’t be nearly as impressed. So how do the two products compare for Windstream?
Data ingestion – Data is ingested using the same mechanisms – ElasticCo’s filebeat and logstash are important components of data ingestion, and these components remain unchanged. This means existing processes that feed data into ElasticSearch today would not need to be changed to begin ingesting data into OpenSearch.
Data storage – Both products distribute searchable data over a cluster of servers. Data storage is “tiered” as hot, warm, and cold which allows less used data to reside on slower, less expensive resources. We have confirmed that ingested data is properly housed on cluster nodes designated for ‘hot’ storage and moved to ‘warm’ and ‘cold’ storage as dictated by defined policies. The item count to size ratio is similar between both products (i.e. storing ten million documents takes about the same amount of disk space). OpenSearch provides the ability to alert on transition failures (moving from hot to warm, for instance) which will reduce the amount of manual “health checking” required for the environment.
Search and aggregation – Both products allow both GUI and API searches of indexed data. Data can be aggregated as it is searched – returning the max/min/average value from a search, a count of records matching search criterion, creating sub-aggregations. ElasticSearch does have aggregations not available in OpenSearch, although these could be handled through custom scripted aggregations and many have corresponding GitHub issues requesting such an aggregation be added to OpenSearch (e.g. weighted average, geohash grid, or geotile grid)
auto-interval date histogram
x
categorize text
x
children
x
composite
x
frequent items
x
geohex grid
x
geotile grid
x
ip prefix
x
multi terms
x
parent
x
random sampler
x
rare terms
x
terms
x
variable width histogram
x
boxplot
x
geo-centroid
x
geo-line
x
median absolute deviation
x
rate
x
string stats
x
t-test
x
top metrics
x
weighted avg
x
Alerting – ElastAlert2 can be used to provide the same index monitoring and alerting functionality that ElastAlert currently provides with ElasticSearch. Additionally, OpenSearch includes a built-in alerting capability that might allow us to streamline the functionality into the base OpenSearch implementation.
API Access – Both ElasticSearch and OpenSearch provide API-based access to data. Queries to the ElasticSearch API endpoint returned expected data when directed to the OpenSearch API endpoint. The ElasticSearch python module can be used to access OpenSearch data, although there is a specific OpenSearch module as well.
UX – ElasticSearch allows users to search and visualize data through Kibana; OpenSearch provides graphical user access in OpenSearch Dashboard. While the “look and feel” of the GUI differs (Kibana 8 looks different than the Kibana 7 we use today, too), the user functionality remains the same.
Kibana 7.7

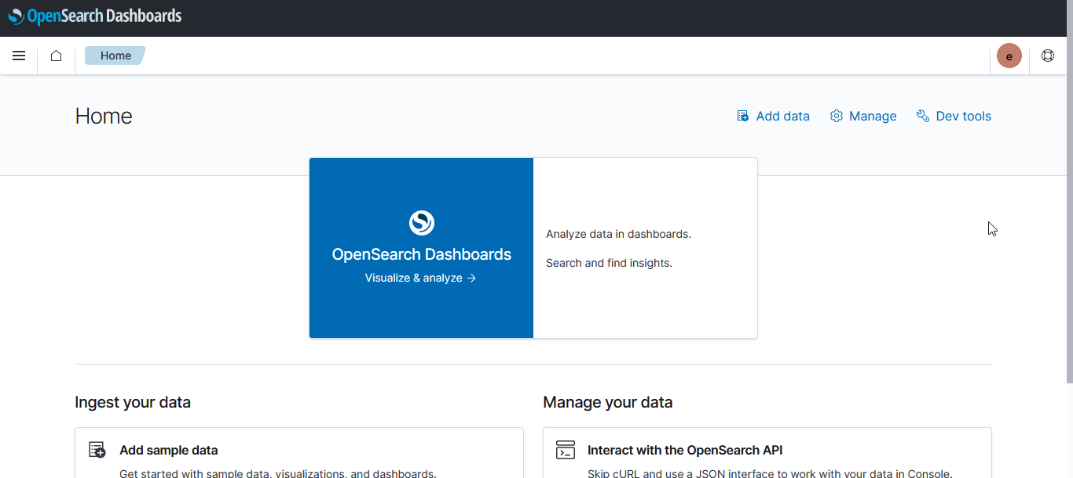

OpenSearch Dashboards 2.2
Kibana uses “KQL” – Kibana Query Language – to compose searches while OpenSearch Dashboards uses “DQL” – Dashboards Query Language, but queries used in Kibana were used in OpenSearch Dashboard without modification.
Currently used visualizations are available in both Kibana and OpenSearch Dashboards
Kibana Visualization
OpenSearch Dashboards Visualization
But there are some currently unused visualizations that are unique to each product.
Area
x
x
Controls
x
x
Data Table
x
x
Gauge
x
x
Goal
x
x
Heat Map
x
x
Horizonal Bar
x
x
Lens
x
Line
x
x
Maps
x
Markdown
x
x
Metric
x
x
Pie
x
x
Tag Cloud
x
x
Timeline
x
x
TSVB
x
x
Vega
x
x
Vertical Bar
x
x
Coordinate Map
x
Gantt Chart
x
Region Map
x
Dashboards can be used to group visualizations.
Kibana
OpenSearch Dashboards
New features will be available in either OpenSearch or a licensed installation of ElasticSearch. Currently data is either retained as written or aged out of the system to save disk space. Either path allows us to roll up data – as an example retaining the total number of users per month or total bytes per month instead of retaining each detailed record. Additionally, we will be able to use the “anomaly detection” which is able to monitor large volumes of index data and highlight unusual events. Both newer ElasticSearch versions and OpenSearch offer a Tableau connector which may make data stored in the platform more accessible to users.
Sorry, again, Anya … I really mean it this time. Restart your ‘no posting about computer stuff’ timer!
I was able to cobble together a functional configuration to authenticate users through an OpenID identity provider. This approach combined the vendor documentation, ten different forum posts, and some debugging of my own. Which is to say … not immediately obvious.
Importantly, you can enable debug logging on just the authentication component. Trying to read through the logs when debug logging is set globally is unreasonable. To enable debug logging for JWT, add the following to config/log4j2.properties
On the OpenSearch servers, in ./config/opensearch.yml, make sure you have defined plugins.security.ssl.transport.truststore_filepath
While this configuration parameter is listed as optional, something needs to be in there for the OpenID stuff to work. I just linked the cacerts from our JDK installation into the config directory.
If needed, also configure the following additional parameters. Since I was using the cacerts truststore from our JDK, I was able to use the defaults.
plugins.security.ssl.transport.truststore_type
The type of the truststore file, JKS or PKCS12/PFX. Default is JKS.
plugins.security.ssl.transport.truststore_alias
Alias name. Optional. Default is all certificates.
Note that subject_key and role_key are not defined. When I had subject_key defined, all user logon attempts failed with the following error:
[2022-09-22T12:47:13,333][WARN ][c.a.d.a.h.j.AbstractHTTPJwtAuthenticator] [UOS-OpenSearch] Failed to get subject from JWT claims, check if subject_key 'userId' is correct.
[2022-09-22T12:47:13,333][ERROR][c.a.d.a.h.j.AbstractHTTPJwtAuthenticator] [UOS-OpenSearch] No subject found in JWT token
[2022-09-22T12:47:13,333][WARN ][o.o.s.h.HTTPBasicAuthenticator] [UOS-OpenSearch] No 'Basic Authorization' header, send 401 and 'WWW-Authenticate Basic'
Finally, use securityadmin.sh to load the configuration into the cluster:
Restart OpenSearch and OpenSearch Dashboard — in the role mappings, add custom objects for the external user IDs.
When logging into the Dashboard server, users will be redirected to the identity provider for authentication. In our sandbox, we have two Dashboard servers — one for general users which is configured for external authentication and a second for locally authenticated users.
This turned out to be one of those situations where I went down a very complicated path for a very simple problem. We were setting up ElastAlert2 in our OpenSearch sandbox. I’ve used both the elasticsearch-py and opensearch-py modules with Python 3 to communicate with the cluster, so I didn’t anticipate any problems.
Which, of course, meant we had problems. A very cryptic message:
javax.net.ssl.SSLHandshakeException: Insufficient buffer remaining for AEAD cipher fragment (2). Needs to be more than tag size
A quick perusal of the archive of all IT knowledge (aka Google) led me to a Java bug: https://bugs.openjdk.org/browse/JDK-8221218 which may or may not be resolved in the latest OpenJDK (which we are using). I say may or may not because it’s marked as resolved in some places but people report experiencing the bug after resolution was reported.
Fortunately, the OpenSearch server reported something more useful:
[2022-09-20T12:18:55,869][WARN ][o.o.h.AbstractHttpServerTransport] [UOS-OpenSearch.example.net] caught exception while handling client http traffic, closing connection Netty4HttpChannel{localAddress=/10.1.2.3:9200, remoteAddress=/10.1.2.4:55494} io.netty.handler.codec.DecoderException: io.netty.handler.ssl.NotSslRecordException: not an SSL/TLS record: 504f5354202f656c617374616c6572745f7374617475735f6572726f722f5f646f6320485454502f312e310d0a486f73743a20
Which I’ve shortened because it was several thousand fairly random seeming characters. Except they aren’t random — that’s the communication hex encoded. Throwing the string into a hex decoder, I see the HTTP POST request.
Which … struck me as rather odd because it should be SSL encrypted rubbish. Turns out use_ssl was set to False! Evidently attempting to send clear text ‘stuff’ to an encrypted endpoint produces the same error as reported in the Java bug.
Setting use_ssl to true brought us to another adventure — an SSLCertVerificationError. We have set the verify_certs to false — even going so far as to go into util.py and modifying line 354 so the default is False. No luck. But there’s another config in each ElastAlert2 rule — http_post_ignore_ssl_errors — that actually does ignore certificate errors. One the rules were configured with http_post_ignore_ssl_errors, ElastAlert2 was able to communicate with the OpenSearch cluster and watch for triggering events.
I took over management of an ElasticSearch environment that has a lot of configuration inconsistencies. Unfortunately, the previous owners weren’t the ones who built the environment either … so no one knew why ServerX did one thing and ServerY did another. Didn’t mess with it (if it’s working, don’t break it!) until we encountered some users who couldn’t find their data — because, depending on which logstash server information transits, stuff ends up in different indices. So now we’re consolidating configurations and I am going to pull the “right” config files into a git repo so we can easily maintain consistency.
Except … any repository becomes in scope for security scanning. And, really, typing your password in clear text isn’t a wonderful plan. So my first step is using environment variables as configuration parameters in logstash.
The first thing to do is set the environment variables somewhere logstash can use them. In my case, I’m using a unit file that sources its environment from /etc/default/logstash
Once the environment variables are there, enclose the variable name in ${} and use it in the config:
Logstash Config
Restart ElasticSearch and verify the pipeline(s) have started successfully.
The following configuration changes needed to be made to enable federated authentication through OpenIDC using OpenDistro 1.8.0 withElasticSearch 7.7.0 — this presupposes that you have an application properly registered with an OIDC identity provider.
My experience is that the ElasticSearchAPI will allow authentication for local users. Kibana, however, does not — if you want to allow local users to log into Kibana, you’d either need a different Kibana instance (permanently allow local users to access Kibana) or update the kibana.yml to exclude the federated logon stuff & restart the service (temporary workaround when the identity provider has an issue).
ElasticSearch, based on the Lucene search software, is a distributed search and analytics application which ingests, stores, and indexes data. Kibana is a web-based front-end providing user access to data stored within ElasticSearch.
What is OpenSearch?
In short, it’s the same but different. OpenSearch is also based on the Lucene search software, is designed to be a distributed search and analytics application, and ingests/stores/indexes data. If it’s essentially the same thing, why does OpenSearch exist? ElasticSearch was initially licensed under the open-source Apache 2.0 license – a rather permissive free software license. ElasticCo did not agree with how their software was being used by Amazon; and, in 2021, the license for ElasticSearch was changed to Server Side Public License (SSPL). One of the requirements of SSPL is that anyone who implements the software and sells their implementation as a service needs to publish their source code under the SSPL license – not just changes made to the original program but all other software a user would require to run the software-as-a-service environment for themselves. Amazon used ElasticSearch for their Amazon Elasticsearch Service offering, but was unable/unwilling to continue doing so under the new license terms. In April of 2021, Amazon Web Services created a fork of ElasticSearch as the basis for OpenSearch.
Differences Between OpenSearch and ElasticSearch
After the OpenSearch fork was created, the product roadmap for ElasticSearch was driven by ElasticCo and the roadmap for OpenSearch was community driven (with significant oversight and input from Amazon) – this means the products are not identical although they provide the same core functionality. Elastic publishes a list of features unique to ElasticSearch, and the underlying machine learning algorithms are different. However, the important components of the “unique” feature list have been implemented in OpenSearch over time.
The biggest differences are price and support. OpenSearch is free software – there is no purchasing a license to unlock features. It does appear that Amazon has an internal iteration of OpenSearch as their as-a-service offering provides features not available in the open-source OpenSearch code base, but that is only available for cloud customers. ElasticCo offers ElasticSearch as free software with a limited feature set. One critical limitation is user authentication mechanisms – we are unable to implement PingID as an authentication source with the free feature set. Advanced features not currently used today – machine learning based anomaly detection, as an example – are also unavailable in the free iteration of ElasticSearch. With an ElasticSearch license, we would also get vendor support. OpenSearch does not offer vendor support, although there are third party companies that will provide support services.
Both OpenSearch and ElasticSearch have community-based support forums available – I have gotten responses from developers on both forums for questions regarding usage nuances.
Salient Feature Comparison
Most companies have a list differentiating their product from the products offered by competitors – but the important thing is how the products differ as it relates to how an individual customer uses the product. A car that can have a fresh cup of espresso waiting for you as you leave for work might be amazing to some people, but those who don’t drink coffee won’t be nearly as impressed. So how do the two products compare for me?
Data ingestion – Data is ingested using the same mechanisms – ElasticCo’s filebeat and logstash are important components of data ingestion, and these components remain unchanged. This means existing processes that feed data into ElasticSearch today would not need to be changed to begin ingesting data into OpenSearch.
Data storage – Both products distribute searchable data over a cluster of servers. Data storage is “tiered” as hot, warm, and cold which allows less used data to reside on slower, less expensive resources. We have confirmed that ingested data is properly housed on cluster nodes designated for ‘hot’ storage and moved to ‘warm’ and ‘cold’ storage as dictated by defined policies. The item count to size ratio is similar between both products (i.e. storing ten million documents takes about the same amount of disk space). OpenSearch provides the ability to alert on transition failures (moving from hot to warm, for instance) which will reduce the amount of manual “health checking” required for the environment.
Search and aggregation – Both products allow both GUI and API searches of indexed data. Data can be aggregated as it is searched – returning the max/min/average value from a search, a count of records matching search criterion, creating sub-aggregations. ElasticSearch does have aggregations not available in OpenSearch, although these could be handled through custom scripted aggregations and many have corresponding GitHub issues requesting such an aggregation be added to OpenSearch (e.g. weighted average, geohash grid, or geotile grid)
Aggregation Name
ElasticSearch 8.x
OpenSearch 2.x
auto-interval date histogram
x
categorize text
x
children
x
composite
x
frequent items
x
geohex grid
x
geotile grid
x
ip prefix
x
multi terms
x
parent
x
random sampler
x
rare terms
x
terms
x
variable width histogram
x
boxplot
x
geo-centroid
x
geo-line
x
median absolute deviation
x
rate
x
string stats
x
t-test
x
top metrics
x
weighted avg
x
Alerting – ElastAlert2 can be used to provide the same index monitoring and alerting functionality that ElastAlert currently provides with ElasticSearch. Additionally, OpenSearch includes a built-in alerting capability that might allow us to streamline the functionality into the base OpenSearch implementation.
API Access – Both ElasticSearch and OpenSearch provide API-based access to data. Queries to the ElasticSearch API endpoint returned expected data when directed to the OpenSearch API endpoint. The ElasticSearch python module can be used to access OpenSearch data, although there is a specific OpenSearch module as well.
UX – ElasticSearch allows users to search and visualize data through Kibana; OpenSearch provides graphical user access in OpenSearch Dashboard. While the “look and feel” of the GUI differs (Kibana 8 looks different than the Kibana 7 we use today, too), the user functionality remains the same.
Currently used visualizations are available in both Kibana and OpenSearch Dashboards
Kibana Visualization
OpenSearch Dashboards Visualization
But there are some currently unused visualizations that are unique to each product.
Visualization
Kibana
OpenSearch Dashboard
Area
x
x
Controls
x
x
Coordinate Map
x
Data Table
x
x
Gantt Chart
x
Gauge
x
x
Goal
x
x
Heat Map
x
x
Horizonal Bar
x
x
Lens
x
Line
x
x
Maps
x
Markdown
x
x
Metric
x
x
Pie
x
x
Region Map
x
Tag Cloud
x
x
Timeline
x
x
TSVB
x
x
Vega
x
x
Vertical Bar
x
x
Dashboards can be used to group visualizations.
Kibana
OpenSearch Dashboards
New features will be available in either OpenSearch or a licensed installation of ElasticSearch. Currently data is either retained as written or aged out of the system to save disk space. Either path allows us to roll up data – as an example retaining the total number of users per month or total bytes per month instead of retaining each detailed record. Additionally, we will be able to use the “anomaly detection” which is able to monitor large volumes of index data and highlight unusual events. Both newer ElasticSearch versions and OpenSearch offer a Tableau connector which may make data stored in the platform more accessible to users.
To view the snapshots held in AWS, you should be able to use Kibana. From “Management” navigate to “Snapshot and Restore” and look at the list of snapshots. We, however, get a timeout attempting to view the snapshots. Instead, use the _snapshot ES API endpoint to get the name of the repository:
Then use the name to create the ES API URI to get a list of snapshots in the repository – GET _snapshot/*?verbose=false – you will get a list of snapshots, which indices are included in each snapshot, and a state (SUCCESS or FAILED).
